CNC machining for packaging machinery parts

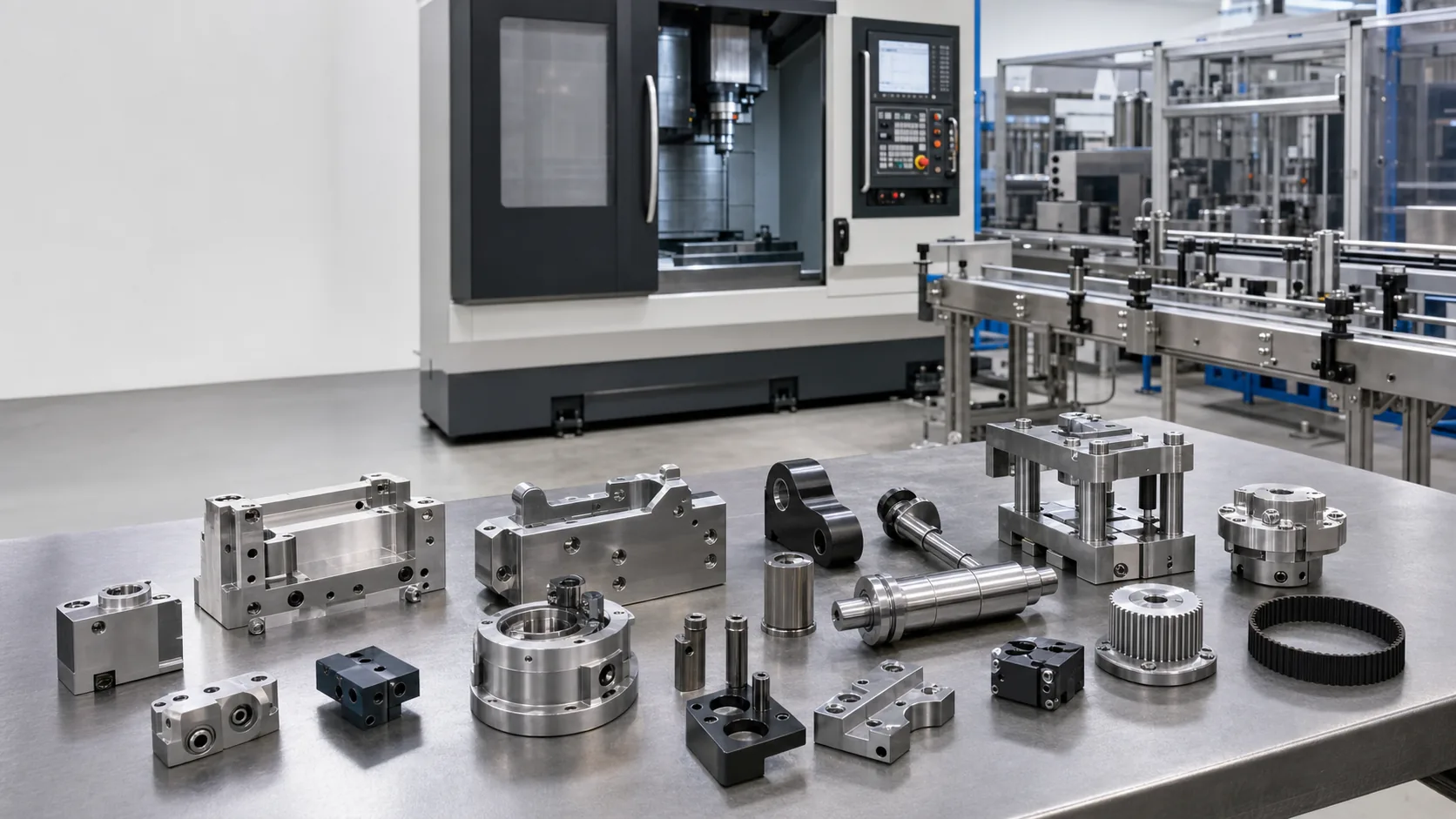

CNC machining for packaging machinery shafts, guides, rollers, change parts, sealing components, stainless parts, engineering plastics, spares, and RFQs.
Industry
Packaging and Processing Machinery
Manufacturing route
Precision CNC Machining
Application
Filling, Capping, Conveying, Cartoning, Labeling, Sealing, and End-of-Line Equipment
Quote input
STEP model and controlled 2D drawing, or measured sample with assembly photos, Machine station, product size range, speed, load, temperature, and cleaning environment, Material grade, contact status, finish, fits, critical dimensions, and inspection needs, Prototype quantity, annual spare demand, downtime target, delivery country, and packaging requirements
Main decision
What machine station, package format, line speed, and product path does the part support?
Review the manufacturing route, required files, quality controls, and delivery expectations before sending drawings.
Industry manufacturing guide
Packaging machinery parts should be sourced from the function of the machine station, not from the part name alone. A guide, roller, shaft, star wheel, sealing component, or change part may control product position, timing, friction, clamp force, temperature, cleaning access, or operator setup. Buyers should identify the product path, contact status, line speed, mating components, adjustment range, cleaning method, expected wear, and consequence of failure. These inputs determine whether the part should use stainless steel, aluminum, acetal, UHMWPE, PEEK, or another drawing-approved material; which dimensions are critical; how the free-state part is inspected; and whether a prototype must be proven in the actual machine before repeat spares are released.
Industry-specific sourcing decisions
Packaging machinery parts should be sourced from the function of the machine station, not from the part name alone. A guide, roller, shaft, star wheel, sealing component, or change part may control product position, timing, friction, clamp force, temperature, cleaning access, or operator setup. Buyers should identify the product path, contact status, line speed, mating components, adjustment range, cleaning method, expected wear, and consequence of failure. These inputs determine whether the part should use stainless steel, aluminum, acetal, UHMWPE, PEEK, or another drawing-approved material; which dimensions are critical; how the free-state part is inspected; and whether a prototype must be proven in the actual machine before repeat spares are released.
Project-specific decision examples
A bottle or container transfer set must maintain pitch, side support, and clearance through acceleration and handoff. A geometry that looks correct at rest can mark containers or jam when line speed increases.
Provide the container model, pitch, direction of travel, mating conveyors, installed datum, material grade, edge condition, and machine-trial acceptance criteria before freezing repeat sets.
Several carton sizes share one machine but use different rails, pockets, pushers, and adjustment blocks. Uncontrolled reference points make changeover slow and prevent one set from repeating another.
Define the common machine datum, format-specific interfaces, adjustment range, part identification, setup dimensions, and a kit-level inspection and packaging plan.
A long shaft carries rollers, bearings, couplings, or timing components. Local diameters may pass while accumulated runout, shoulder position, or keyway relationship creates vibration and tracking problems.
Control bearing seats, shoulders, runout, concentricity, key or coupling orientation, straightness, finish, and inspection support from the assembled drive line.
A sealing component combines heater, sensor, film-contact, pressure, alignment, and thermal-expansion requirements. Flatness at room temperature alone may not predict the operating seal.
Map the thermal load, working face, heater and sensor holes, coating or release surface, mounting constraint, operating temperature, and buyer-owned seal validation.
A capping assembly may combine torque transmission, bottle or cap contact, springs, bearings, elastomers, and frequent disassembly. Material or fit substitution can change torque and service life.
Review the full head assembly, cap geometry, torque path, contact materials, cleaning method, wear items, fits, and functional trial rather than quoting one isolated component.
A failed spare is available but the original drawing is missing. Wear, repair, deformation, and undocumented modifications make a direct copy risky, especially when only one sample exists.
Record the sample condition, inspect the mating machine features, separate nominal geometry from wear, approve a controlled reconstruction, and trial one part before ordering backup inventory.
Product to delivery chain
Confirm supplier fit, process fit, material or application fit, quality risk, quote inputs, and delivery expectations before committing to production.
Define Machined Packaging Machine Components and Change Parts geometry, function, quantity, and application.
Review whether Precision CNC Machining fits the part geometry, tolerance, material, and volume.
Confirm tolerance, finish, inspection notes, certification, packaging, and delivery expectations.
Upload files and project details so sales and engineering can review the request and prepare a quotation.
Prototype to production
A practical sourcing project starts with the requirement, confirms manufacturability, reviews samples, prepares the quotation, and then moves toward production and delivery.
Clarify Machined Packaging Machine Components and Change Parts, drawings, application, material, quantity, and target delivery.
Check whether Precision CNC Machining is suitable or whether another process is better.
Confirm quote drivers, tooling or setup, sample needs, inspection notes, and packaging.
Move approved parts into repeatable production, quality inspection, and export delivery.
Visual manufacturing path
Use the image chain to understand how drawings become a reviewed process, an application-ready part, an inspection plan, and protected delivery.
Review CAD, dimensions, material, tolerance, finish, and missing quotation inputs.
Review the machining route, setup and datum plan, tool access, burr control, secondary operations, and inspection evidence before production.
Connect precision machined shafts, flanges, housings, brackets, and fixtures to industrial OEM applications.
Plan dimensional inspection, critical features, surface checks, and supporting documentation.
Separate finished parts, protect surfaces and metal, label batches, and prepare export packaging.
Manufacturing specifications
Use these specifications to judge process fit, material fit, quality risk, quote inputs, and delivery expectations without relying on broad marketing claims.
Engineering detail
This section gives search visitors the hard sourcing details that usually matter before sending drawings: process fit, material fit, tolerance, finish, quality risk, quote blockers, and production planning.
What sales will review
Guide rails, changeover blocks, product nests, star wheels, timing screws, and format tooling, Drive shafts, roller shafts, hubs, spacers, bearing housings, couplings, and indexing components, Filling, capping, labeling, cartoning, sealing, and end-of-line machine brackets and fixtures, Sealing jaws, gripper components, vacuum plates, sensor mounts, nozzles, manifolds, and maintenance tooling
Functional datums, bearing and seal fits, shaft runout, roller concentricity, guide alignment, and assembly stack, Thin plastic part distortion, moisture or temperature condition, free-state measurement, and restrained installation, Burr direction, edge break, crevices, exposed threads, drainage, cleaning access, and protected product-contact surfaces, Coating, anodizing, passivation, hardening, polishing, masking, and final dimensions after secondary operations, Reverse-engineered spare-part decisions separated into measured facts, buyer-approved assumptions, and machine-trial results
Complex 3D product paths, deep pockets, thin walls, long shafts, fine sealing features, and difficult workholding, Tight bearing fits, broad flatness, profile tolerances, runout, surface finish, and inspection reporting, Special stainless, exact engineering-plastic grade, heat treatment, passivation, anodizing, coating, or polishing, One-off reverse engineering, urgent downtime spares, sample iterations, assembly checks, and machine-trial support, Small mixed-part kits, serialization, protected surfaces, cleanliness, and line-side packaging
Critical fits, runout, concentricity, position, flatness, profile, and surface finish inspected from functional datums, Material grade and records matched to the controlled drawing and buyer documentation request, Mating, movement, changeover, product handling, or gauge checks defined before repeat production, Cleanliness, passivation, food-contact documentation, and special packaging supplied only to an approved specification, Revision, part identification, inspection frequency, and spare interchangeability controlled after machine approval
Upload CAD files, PDF drawings, product photos, material notes, quantity, tolerance, finish, delivery target, and any existing supplier specifications.
Sales and engineering review process fit, material, tolerance, quantity, finish, application, delivery needs, and uploaded files before preparing the quotation.
An early review can use lawful product photos, rough drawings, samples, or BOM files. A firm quotation still depends on controlled technical files, resolved requirements, eligible supplier evidence, and a current written scope.
Typical projects include Guide rails, changeover blocks, product nests, star wheels, timing screws, and format tooling, Drive shafts, roller shafts, hubs, spacers, bearing housings, couplings, and indexing components, Filling, capping, labeling, cartoning, sealing, and end-of-line machine brackets and fixtures, Sealing jaws, gripper components, vacuum plates, sensor mounts, nozzles, manifolds, and maintenance tooling. Final process selection depends on the drawing, material, quantity, and functional requirements.
Critical fits, runout, concentricity, position, flatness, profile, and surface finish inspected from functional datums; Material grade and records matched to the controlled drawing and buyer documentation request; Mating, movement, changeover, product handling, or gauge checks defined before repeat production; Cleanliness, passivation, food-contact documentation, and special packaging supplied only to an approved specification; Revision, part identification, inspection frequency, and spare interchangeability controlled after machine approval. State the required inspection and documentation scope in the RFQ rather than assuming it is included.
Upload drawings, product photos, material requirements, quantity, target price, tolerance, finish, and delivery expectations so sales can review the project.
